介绍:

完成进程的列举和模块的列举(1221)

主要功能介绍:

01对话框的载入DialogBox

02按钮的响应 WM_COMMAND

03加载listBox

04listBox的初始化

05WM_NOTIFY (List的响应)

06进程的权限提升

07CreateToolhelp32Snapshot

08Module32Next

主要是一些知识点的运用

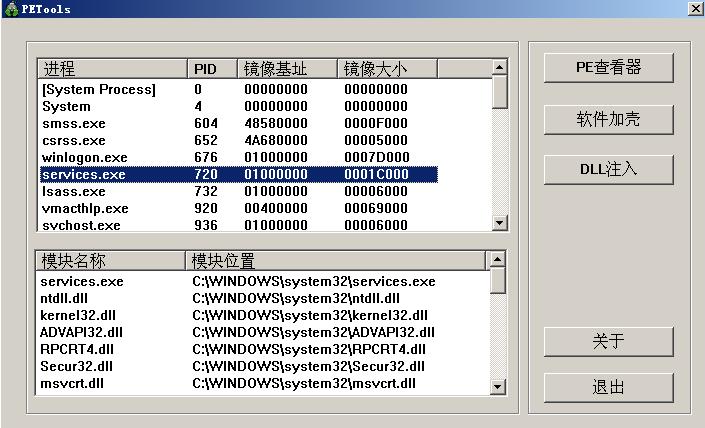

展示图片:

主要代码:

// 20171217_01.cpp : Defines the entry point for the application.

//



#include "stdafx.h"

#include "resource.h"

#include <windows.h>

#include <stdio.h>

#include <stdlib.h>

#include "tlhelp32.h"

#include <commctrl.h>

#include <shellapi.h>

#pragma comment(lib,"comctl32.lib")



HINSTANCE hAppInstance;





//提升进程权限

BOOL EnableDebugPrivilege(BOOL bEnable)

{

	BOOL status=FALSE;

	HANDLE hToken;

	//打开当前进程的访问令牌

	if(OpenProcessToken(GetCurrentProcess(),TOKEN_ADJUST_PRIVILEGES,&hToken))

	{

		LUID uID;

		LookupPrivilegeValue(NULL,SE_DEBUG_NAME,&uID);

		//调整特权级别

		TOKEN_PRIVILEGES tp;

		tp.PrivilegeCount =1;

		tp.Privileges[0].Luid=uID;

		tp.Privileges[0].Attributes=bEnable?SE_PRIVILEGE_ENABLED:0;

		AdjustTokenPrivileges(hToken,FALSE,&tp,sizeof(tp),NULL,NULL);

		status =(GetLastError() ==ERROR_SUCCESS);

		CloseHandle(hToken);

	}

	return status;

}



BOOL EnumProcess(HWND hListProcess)

{

	HWND hProLV =hListProcess;

	LVITEM lvi;

	DWORD dwIdx=0;

	TCHAR szPath[MAX_PATH];         //进程路径

	TCHAR szPID[10];                        //PID

	TCHAR szBaseAddr[10];               //镜像基址

	TCHAR szBaseSize[10];                //镜像大小

	HANDLE hProSnapshot =NULL;		//进程快照句柄

	HANDLE hModSnapshot=NULL;	//模块快照句柄

	PROCESSENTRY32 pe32={0};

	MODULEENTRY32 me32 = {0};

	//SHFILEINFO fi;



	//清空列表

	ListView_DeleteAllItems(hProLV);

	//创建进程快照

	hProSnapshot =CreateToolhelp32Snapshot(TH32CS_SNAPALL,0);

	if(hProSnapshot==INVALID_HANDLE_VALUE)

	{

		return FALSE;

	}



	pe32.dwSize =sizeof(pe32);

	ZeroMemory(&lvi,sizeof(lvi));

	lvi.mask		= LVIF_TEXT | LVIF_IMAGE | LVIF_PARAM | LVIF_STATE;

	lvi.state		= 0;

	lvi.stateMask	= 0;

	//枚举进程

	BOOL fOk =Process32First(hProSnapshot,&pe32);

	for (; fOk; fOk =Process32Next(hProSnapshot,&pe32),dwIdx++)

	{

		//StringCchPrintf(szPID,sizeof(szPID),_T("%08x"),pe32.th32ProcessID);

		sprintf(szPID,"%d",pe32.th32ProcessID);



		hModSnapshot =CreateToolhelp32Snapshot(TH32CS_SNAPMODULE,pe32.th32ProcessID);

		if (hModSnapshot !=INVALID_HANDLE_VALUE)

		{

			ZeroMemory(&me32,sizeof(me32));

			me32.dwSize = sizeof(me32);

			if(Module32First(hModSnapshot, &me32) && pe32.th32ProcessID !=0)

			{



				sprintf(szBaseAddr,"%08X",me32.modBaseAddr);

				sprintf(szBaseSize,"%08X",me32.modBaseSize);

				sprintf(szPath,"%s",pe32.szExeFile);



			}else{

				sprintf(szBaseAddr,"%08X",0);

				sprintf(szBaseSize,"%08X",0);

				sprintf(szPath,"%s",pe32.szExeFile);



			}

		}else{

			sprintf(szBaseAddr,"%08X",0);

			sprintf(szBaseSize,"%08X",0);

			sprintf(szPath,"%s",pe32.szExeFile);

		}

		lvi.pszText =szPath;

		lvi.cchTextMax=MAX_PATH;

		lvi.iItem =dwIdx;

	    ListView_InsertItem(hProLV,&lvi);

		ListView_SetItemText(hProLV,dwIdx,1,szPID);

		ListView_SetItemText(hProLV,dwIdx,2,szBaseAddr);

		ListView_SetItemText(hProLV,dwIdx,3,szBaseSize);

	}

	return TRUE;

}



BOOL EnumModules(HWND hListProcess,HWND hListModule,WPARAM wParam,LPARAM lParam)

{

	DWORD dwRowId;

	TCHAR szPid[0x20];

	LV_ITEM lv;

	//HWND hListModule;

	ListView_DeleteAllItems(hListModule);

	memset(&lv,0,sizeof(LV_ITEM));

	memset(szPid,0,0x20);



	dwRowId = SendMessage(hListProcess,LVM_GETNEXTITEM,-1,LVNI_SELECTED);

	//HWND hWnd = AfxGetMainWnd()->m_hWnd;

	//hListModule = GetDlgItem((HWND)hAppInstance,IDC_LIST_MODULE);



	if(dwRowId == -1)

	{

		MessageBox(NULL,TEXT("请选择进程"),TEXT("出错了"),MB_OK);

		return FALSE;



	}



	//获取PID

	lv.iSubItem = 1;

	lv.pszText = szPid;

	lv.cchTextMax = 0x20;

	SendMessage(hListProcess,LVM_GETITEMTEXT,dwRowId,(DWORD)&lv);



	DWORD dwPID = atoi(szPid);



	//通过pid列出所有的Modules

	HANDLE               hModuleSnap = INVALID_HANDLE_VALUE;

    MODULEENTRY32        me32;



    //给进程所引用的模块信息设定一个快照

    hModuleSnap = CreateToolhelp32Snapshot(TH32CS_SNAPMODULE, dwPID);

    if(hModuleSnap == INVALID_HANDLE_VALUE)

    {

		int i = GetLastError();

        return FALSE;

    }



    me32.dwSize = sizeof(MODULEENTRY32);



    if(!Module32First(hModuleSnap, &me32))

    {

        CloseHandle(hModuleSnap);

        return FALSE;

    }



	DWORD dwIdx= 0;

    do

    {

		/*

        printf("\n\n     MODULE NAME:     %s", me32.szModule);

        printf("\n     executable     = %s", me32.szExePath);

        printf("\n     process ID     = 0x%08X", me32.th32ProcessID);

        printf("\n     ref count (g)  =     0x%04X", me32.GlblcntUsage);

        printf("\n     ref count (p)  =     0x%04X", me32.ProccntUsage);

        printf("\n     base address   = 0x%08X", (DWORD)me32.modBaseAddr);

        printf("\n     base size      = %d", me32.modBaseSize);

		*/



		lv.pszText =me32.szModule;

		lv.iItem =dwIdx;

		lv.iSubItem = 0;

		SendMessage(hListModule,LVM_INSERTITEM,dwIdx,(DWORD)&lv);



	    lv.pszText = me32.szExePath;

		lv.iItem=dwIdx;

		lv.iSubItem = 1;

		SendMessage(hListModule,LVM_SETITEM,dwIdx,(DWORD)&lv);



		dwIdx++;

    } while(Module32Next(hModuleSnap, &me32));



    CloseHandle(hModuleSnap);



	return TRUE;

	//MessageBox(NULL,szPid,TEXT("pid"),MB_OK);

}



BOOL CALLBACK AboutDialogProc(

  HWND hwndDlg,  // handle to dialog box

  UINT uMsg,     // message

  WPARAM wParam, // first message parameter

  LPARAM lParam  // second message parameter

)

{

	switch(uMsg)

	{

		case WM_CLOSE:

		{

			//EndDeferWindowPos()

			EndDialog(hwndDlg,0);

			break;

		}

	}



	return FALSE;

}



VOID InitProcessListView(HWND hDlg)

{

	LV_COLUMN lv;

	HWND hListProcess;



	//初始化

	memset(&lv,0,sizeof(LV_COLUMN));

	hListProcess = GetDlgItem(hDlg,IDC_LIST_PROCESS);

	SendMessage(hListProcess,LVM_SETEXTENDEDLISTVIEWSTYLE,LVS_EX_FULLROWSELECT,LVS_EX_FULLROWSELECT);



	//第一列

	lv.mask = LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("进程");

	lv.cx = 150;

	lv.iSubItem = 0;

	SendMessage(hListProcess,LVM_INSERTCOLUMN,0,(DWORD)&lv);



	//第二列

	lv.mask = LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("PID");

	lv.cx = 50;

	lv.iSubItem = 1;

	SendMessage(hListProcess,LVM_INSERTCOLUMN,1,(DWORD)&lv);



	//第三列

	lv.mask =  LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("镜像基址");

	lv.cx = 100;

	lv.iSubItem = 2;

	SendMessage(hListProcess,LVM_INSERTCOLUMN,2,(DWORD)&lv);



	//第四列



	lv.mask =  LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("镜像大小");

	lv.cx = 100;

	lv.iSubItem = 3 ;

	SendMessage(hListProcess,LVM_INSERTCOLUMN,3,(DWORD)&lv);



	EnumProcess(hListProcess);



}



VOID InitMuduleListView(HWND hDlg)

{

	LV_COLUMN lv;

	HWND hListModule;



	//初始化

	memset(&lv,0,sizeof(LV_COLUMN));

	hListModule = GetDlgItem(hDlg,IDC_LIST_MODULE);

	SendMessage(hListModule,LVM_SETEXTENDEDLISTVIEWSTYLE,LVS_EX_FULLROWSELECT,LVS_EX_FULLROWSELECT);



	//第一列

	lv.mask = LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("模块名称");

	lv.cx = 150;

	lv.iSubItem = 0;

	SendMessage(hListModule,LVM_INSERTCOLUMN,0,(DWORD)&lv);



	//第二列

	lv.mask = LVCF_TEXT | LVCF_WIDTH | LVCF_SUBITEM;

	lv.pszText = TEXT("模块位置");

	lv.cx = 300;

	lv.iSubItem = 1;

	SendMessage(hListModule,LVM_INSERTCOLUMN,1,(DWORD)&lv);



}



BOOL CALLBACK MainDialogProc(

  HWND hwndDlg,  // handle to dialog box

  UINT uMsg,     // message

  WPARAM wParam, // first message parameter

  LPARAM lParam  // second message parameter

)

{

	HICON hSmallIcon = NULL;

	HICON hBigIcon = NULL;



	switch(uMsg)

	{

	case WM_CLOSE:

		{

			//EndDeferWindowPos()

			EndDialog(hwndDlg,0);

			break;

		}

	case WM_INITDIALOG:

		{

			//舒适化消息窗口

			//图标加载

			HICON hSmallIcon = LoadIcon(hAppInstance,MAKEINTRESOURCE(IDI_ICON_SMALL));

			HICON hBigIcon = LoadIcon(hAppInstance,MAKEINTRESOURCE(IDI_ICON_BIG));



			SendMessage(hwndDlg,WM_SETICON,ICON_BIG,(long)hBigIcon);

			SendMessage(hwndDlg,WM_SETICON,ICON_SMALL,(long)hSmallIcon);



			InitProcessListView(hwndDlg);

			InitMuduleListView(hwndDlg);



			break;

		}

	case WM_COMMAND:

		{

			switch(LOWORD(wParam))

			{

			case IDC_BUTTON_EXIT:

				{

					EndDialog(hwndDlg,0);

					break;

				}

			case IDC_BUTTON_ABOUT:

				{

					//MessageBox(0,0,0,0);

					DialogBox(hAppInstance,MAKEINTRESOURCE(IDD_DIALOG_ABOUT),NULL,AboutDialogProc);

					break;

				}

			}

		break;



		}



	case WM_NOTIFY:

		{

			NMHDR* pNMHDR = (NMHDR*)lParam;

			if(wParam == IDC_LIST_PROCESS && pNMHDR->code == NM_CLICK)

			{

				EnumModules(GetDlgItem(hwndDlg,IDC_LIST_PROCESS),GetDlgItem(hwndDlg,IDC_LIST_MODULE),wParam,lParam);

			}

			break;

		}



	}

	return FALSE;



}





int APIENTRY WinMain(HINSTANCE hInstance,

                     HINSTANCE hPrevInstance,

                     LPSTR     lpCmdLine,

                     int       nCmdShow)

{

 	// TODO: Place code here.

	hAppInstance = hInstance;

	INITCOMMONCONTROLSEX icex;

	icex.dwSize  = sizeof(INITCOMMONCONTROLSEX);

	icex.dwICC = ICC_WIN95_CLASSES;

	InitCommonControlsEx(&icex);



	EnableDebugPrivilege(TRUE);



	DialogBox(hInstance,MAKEINTRESOURCE(IDD_DIALOG_MAIN),NULL,MainDialogProc);



	return 0;

}
